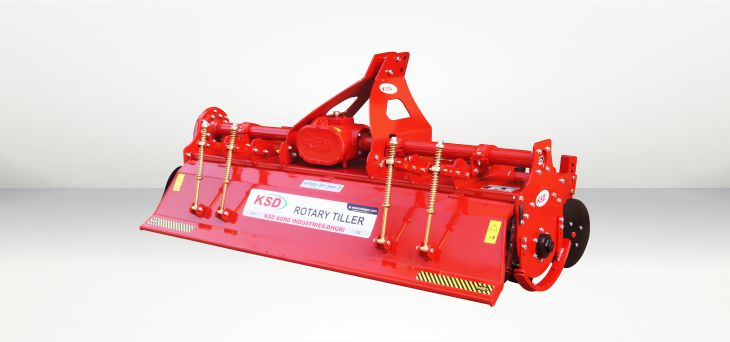

Rotavator Benefits
- Multi Speed gear box provides opon of 4 different rotor rpm for different soil
- Condion and applicaon
- Heavy duty side gear drive in oil bath which ensures high performance in all working condions
- Can loosen & aerate soil up to 7 inches deep.
- Heavy duty spring assembly in plank which ensures perfectly levelled and finished seedbed
- Boron steel blades that last 50% more than Hi Carbon
- Helical arrangement of the blades puts less load on the tractor which makes llage fast.
- Depth skid assembly for easy depth adjustment
- Available in L, C & J blade opons for proper pulverizaon..
- Heavy duty PTO sha with shear bolt / slip clutch (oponal) for overload protecon
- Sealed bearings prevent moisture/mud entry
Technical Specifications
| MODEL | 4139 4 feet |
4139 5 feet |
4139 6 feet |
4139 7 feet |
4139 8 feet |
4139 9 feet |
4139 10 feet |
|---|---|---|---|---|---|---|---|
| Blade | 30 | 36 | 42 | 48 | 54 | 60 | 66 |
| HP | 30 | 40 | 45 | 50 | 55 | 60 | 75 |
| Weight | 390 apprx. | 435 apprx. | 480 apprx | 525 apprx | 570 apprx | 615 apprx | 660 apprx |
| Working Width | 1295mm | 1550mm | 1800mm | 2057mm | 2310mm | 2565mm | 2820mm |
| Total Width | 1420mm | 1676mm | 1930mm | 2180mm | 2438mm | 2690mm | 2946mm |
| Drive System | MULTI SPEED HEAVY DUTY TRANSMISSION GEAR DRIVE | ||||||
| Working Depth | 6”-7” | ||||||
