Laser Land Leveler is used for leveling the field of desired slope using a guided laser beam throughout the field within certain degree. Un-evenness of the soil surface has a significant impact on the germination, stand and yield of crops
Farmers also recognize this and therefore devote considerable time resources in leveling their fields properly. However, traditional methods of leveling land are cumbersome, time consuming as well as expensive

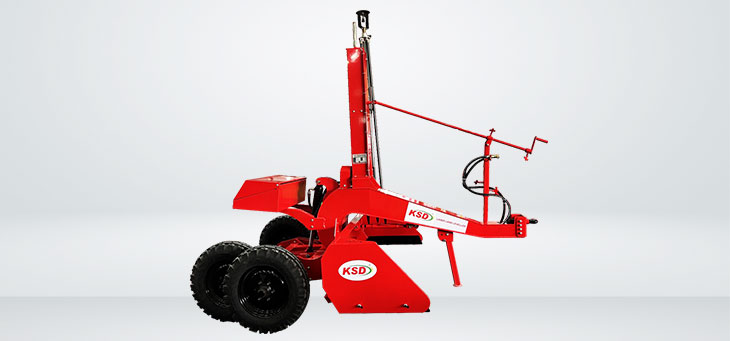

KSD Laser Leveller Features
- Lowers the cultivation time as land levelling is done in one go
- Saves electricity and reduces greenhouse gas emissions
- Higher yields lead to higher income of farmers
- Safety covers on all the moving parts
- Improves uniformity during crop maturity.
- Reduces seed rate, fertilizers, chemicals, and fuel requirements.
- Resistant to water, dust, and temperature to work in all weather conditions.
- Saves water and electricity during the levelling process
Technical Specifications
| Description/ Models | Laser Land Leveller |
|---|---|
| Bucket mm | Width 2134 mm Depth 700 mm Depth 600 mm |
| Mainframe, Square Pipe | 8 mm |
| Main Sheet Thickness | 10 mm |
| Reversible Main Blade, Alloy Steel | 2134 x 10 x 120 |
| Reversible Side Blade, Alloy Steel | 700 x 10 x 120 |
| Laser Transmitter | Operating Range : 1300 Diameter.
Operating Speed : Adjustable Level Accuracy : 1.5mm @ 30 mtr Laser Source : Laser Diode : Red (635mm) Power Source : Battery Electric Input : 12 VDC |
| Rechargeable Batteries | 2 Nos |
| Min. HP of tractor Required | 50 and above |
| Tyre Size | 6.00-16 |
| Hydraulic Cylinder & Capacity | Double Acting, 4 ton |
