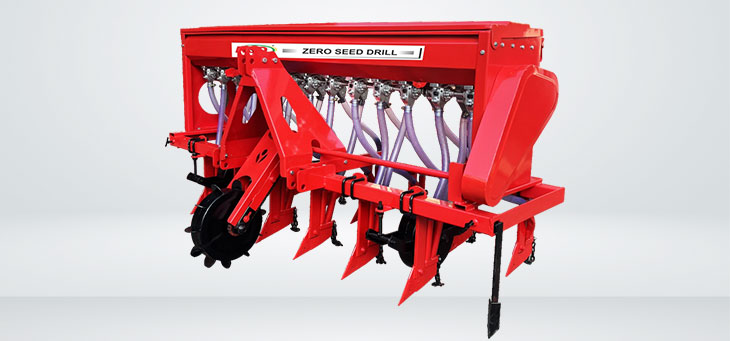

- The zero till consists of a seed box, ferlizer box, seed and ferlizer metering mechanisms, seed tubes, furrow openers, seed and ferlizer rate adjusng lever and transport cum power transming wheels.
- The length of the grooves exposed to the seed, can be increased or decreased and hence the amount of seed sown can be varied.
- Made from heavy structure and gauge sheets.
- Adjustable flow of ferlizer through knob.
- Used for sowing seeds of all kind of crops.
Technical Specifications
| OVERALL WIDTH (INCH) | 78" | 87" | 102" | 117" |
|---|---|---|---|---|
| SEEDING WIDTH (ROW SEEDING) (INCH) | 62" | 77" | 92" | 62" |
| WEIGHT (KG.) APPROX. | 290 | 330 | 370 | 290 |
| HITCH TYPE | CAT-II | |||
| SEED CAPACITY | 65 KG. | 95 KG. | 120 KG. | 145 KG |
| FERTILIZER CAPACITY | 70 KG. | 90 KG. | 115 KG. | 140 KG. |
| NUMBER OF TINES | 9 | 11 | 13 | 15 |
| TYPE OF TINES | INVERTED ‘T’ TYPE | |||
| ROW SPACING (INCH) | 7.5" | 7.5" | 7.5" | 7.5" |
| SEED METERING DEVICE | ALUMINIUM TYPE FLUTED ROLLER | |||
| FERTILIZER METERING DEVICE | ALUMINIUM TYPE FLUTED ROLLER | |||
| MIN. H.P. REQUIRED | 35 | 40 | 45 | 55 |
