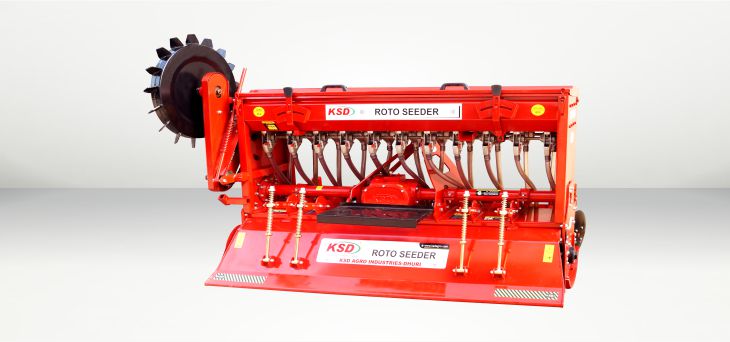

Roto Seeder Benefits
- It saves the farmer’s me and prevents the tractor from wear and tear.
- Its design and operang parts are highly opmized in such a way to distribute
- seeds & ferlizers properly
- Provide excellent performance in the field.
- Cut and mix the crop waste, which further works as organic compost.
- The overall body has been built with MS Heavy Sheet..
- Boron steel blade for beer cung and more life.
- Wire embedded transparent PVC pipe.
Technical Specifications
| Description/Model | KSD7139 | KSD8139 | KSD9139 | ||||
|---|---|---|---|---|---|---|---|
| Main Frame (mm) | 2.5 | ||||||
| Three Point Linkage | CAT II | ||||||
| No. of Blades | 48 | 54 | 60 | ||||
| No. of Seed Distribution Pipe | 2 | ||||||
| Box Sheet (mm) | 12 | 12 | 14 | ||||
| Working Width (mm) | 2000 | 2200 | 2500 | ||||
| Length of Main Frame (mm) | 2300 | 2250 | 2800 | ||||
| Overall Length (mm) | 2300 | 2250 | 2800 | ||||
| Overall width (mm) | 100 | ||||||
| Overall Height (mm) | 1500 | ||||||
| Seed Tank Capacity (Kgs.) | 60 | 75 | 90 | ||||
| Fertilizer Tank Capacity (Kgs.) | 80 | 95 | 110 | ||||
| Total Weight (Kgs. Approx) | 680 | 740 | 800 | ||||
| Tractor Power (H.P) | 45-50 | 50-60 | 60-75 | ||||
| Drive System | MULTI SPEED HEAVY DUTY TRANSMISSION GEAR DRIVE | ||||||
| Working Depth | 6”-7” | ||||||
